Product

Tsunami CVF-15-9T energy-saving water pump system for booster stable and efficient water supply
Tsunami high-efficiency water booster pump with intelligent frequency control showed in product feature list
Tsunami product feature of energy-saving pump system for stable water pressure in residential and commercial applications
Tsunami CVF15-9T Vertical Multi Stage Stainless Steel Centrifugal Pump - Image 4
Tsunami CVF15-9T Vertical Multi Stage Stainless Steel Centrifugal Pump - Image 5
Tsunami CVF15-9T Vertical Multi Stage Stainless Steel Centrifugal Pump - Image 6
Tsunami CVF15-9T Vertical Multi Stage Stainless Steel Centrifugal Pump - Image 7

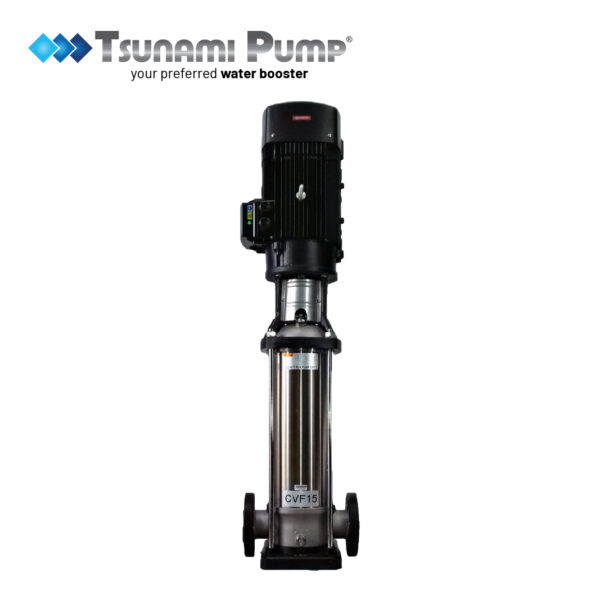

Tsunami CVF15-9T Vertical Multi Stage Stainless Steel Centrifugal Pump

SKU: Tsunami CVF15-9T Categories: ,

Product Feature:

  • CVF is a kind of vertical non – self priming multistage centrifugal pump, pump consist of a base and a pump head, the pressure-resistant cylinder and flow passage components are
    fixed between pump head and in-and-outlet section with tie-bar bolts, the inlet and outlet are located at the pump bottom at the same plane (Inline type).
  • It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure.
  • CV type is applicable to conveying non-corrosive liquid, while CVF is suitable for slightly corrosive liquid.
  • Low maintenance
  • Energy Saving
  • Overheating Protection
  • Anti-Rust Pump Shell
  • Less Noise
  • Strong & Durable

Application:

  • WATER SUPPLY: Water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
  • INDUSTRIAL BOOSTING: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.
  • INDUSTRIAL LIQUID CONVEYING: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.
  • WATER TREATMENT: Ultra filtration system, separator, swimming pool.
  • IRRIGATION: Farmland irrigation, irrigation, dripping irrigation.

Operations Conditions:

  • Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
  •  Liquid temperature:-20°C ~+104°C
  • Ambient temperature: up to +50°C
  • Altitude: up to 1000m
  • Capacity scope: 0.5~90 m3/h, Max. Head: 330m
ADD TO ENQUIRY

Description

Model CVF15-9T
Condition Brand New
Power (kW) 7.5
Horsepower (HP) 10
Voltage (V) 415V, 50Hz
Max.Flow (m³/h) 24
Motor Phase 3 Phase
Dimension (mm) 300W x 248D x 1149H
Weight (Kg) 98
Liquid Temp (°C) -20 to +104
Ambient Temp (°C) Up to +50
Altitude Up to 1000m
Warranty 1 Year
