Product

KF500 Axial Fan Industrial Evaporative Air Cooler System Type

SKU: YET KF500 Category:

Highlights beyond Specs:

  • Most suitable to be installed with G.I ducting

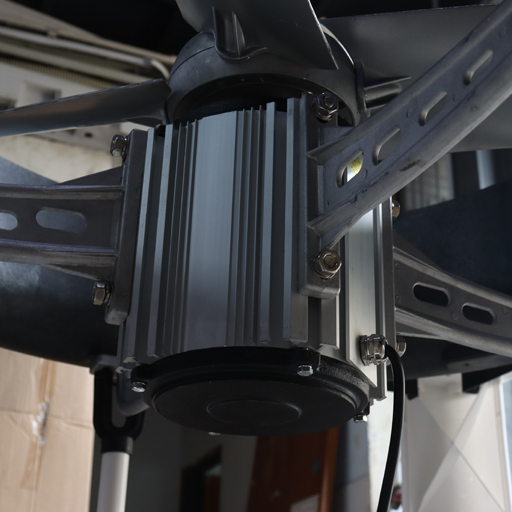

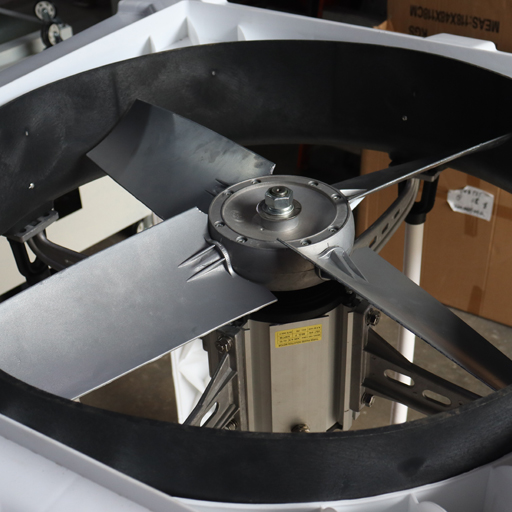

  • Axial motor fan type
  • Effective cooling at water temperature
  • Ultra Powerful Air Flow >50000m³/hr
  • Installed on wall for direct blow or ducting joint
  • Up to 250m² effective area coverage
  • Save at least 80% electricity cost
  • Water Tank capacity : 60L
  • Power consumption : 4500 watts
  • Durable and heavy duty
  • Discharge Choices: BOTTOM (BT) or TOP (TT)
  • 1 YEAR WARRANTY from YET®

Description

Air flow (m³/h) 50000
Air Pressure (PA) 400
Power (W) 4500
Input Power (V) 415(3PH), 50Hz
Fan Speed 12 Speed with inverter control
Noise (dB) ≤85
Effective Area (m²) 200 ~ 250
Water Tank (L) 60
Pad Size (in) 43.3 (L) x 4 (W) x 40 (H)
Dimension (m) 1.5 (L) x 1.5 (W) x 1.5 (H)
Net weight (Kg) 125
Warranty 12 months from YET®
